Model No.: HWE10000
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Origin: CHINA
Sumber Kuasa: Hidraulik
Permohonan: AUTO
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

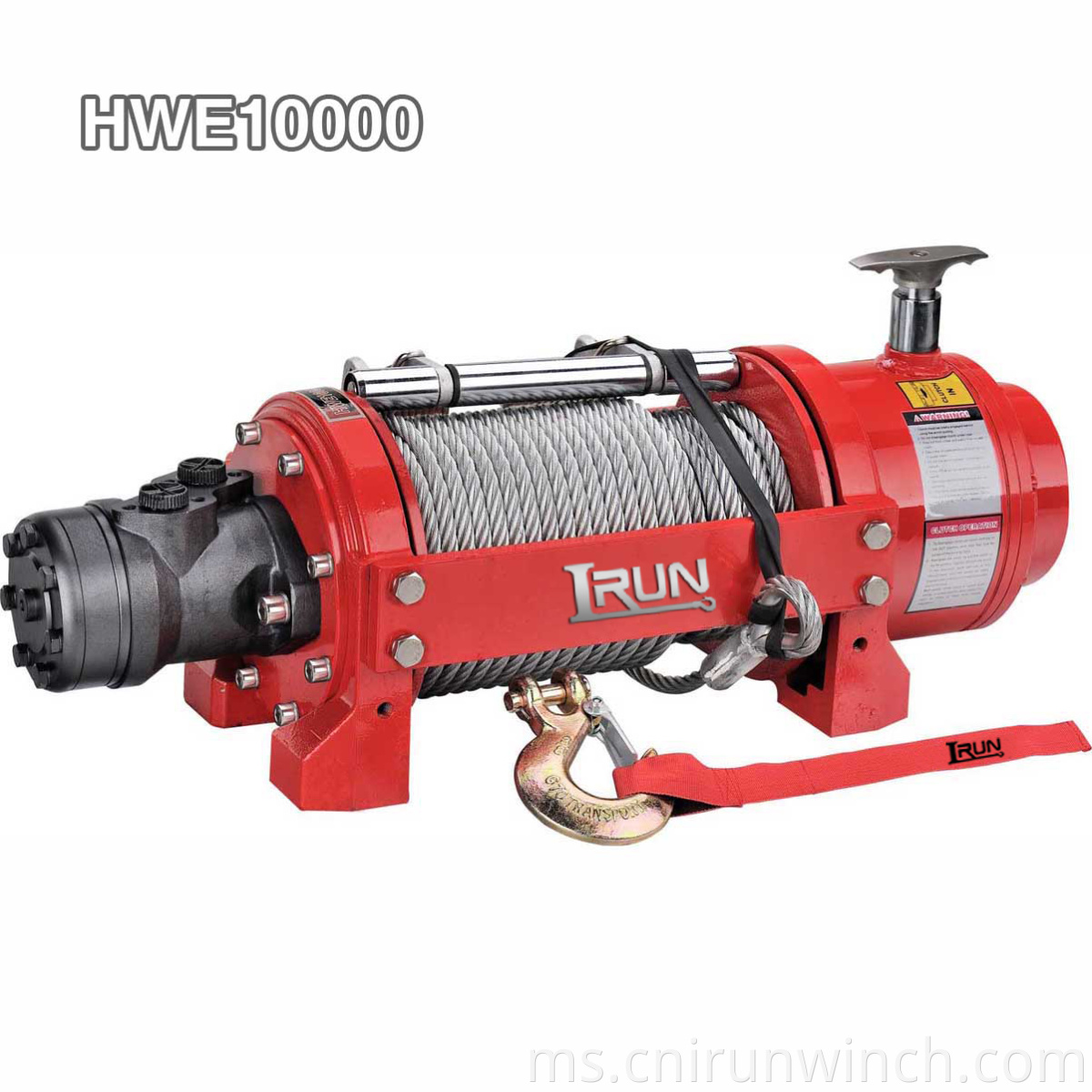

HWE10000
Win Industri Kami NO. HWE1000 ialah Win Hidraulik yang sangat berkuasa untuk memenuhi piawaian EN Eropah. Sistem brek pawl diletakkan di dalam pengurang gear memastikan kebolehpercayaan sepenuhnya dan memberikan penyelenggaraan yang mudah dalam aplikasi kejuruteraan.
ciri-ciri:
1.) Gear planet, penghantaran yang cekap dengan kerja berterusan
2.) Brek ratchet paten di dalam kotak gear
3.) Operasi klac jenis overhed, mudah dan boleh dipercayai
4.) Drum tidak akan menjadi panas selepas lama digunakan
5.) Reka bentuk khas untuk kegunaan Industri
HWE10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: permanent magnet | 100.8ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 15Mpa |
| Gear reduction ratio | 16:1 |
| Cable (Dia.× L) | Ø13/32″×83.7′ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø4.0 “×10.0” (Ø102mm×253mm) |
| Mounting bolt pattern | 14.7 “×4.5 ” (374.2mm×114.3mm)
11.5 “×6.7” (291.6mm×171.2mm) 8-M10 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
3.0(0.9) |
|
4000(1814) |
5.6(812.3) |
2.6(10) |
5.9(1.8) |
|
6000(2722) |
9.4(1363.5) |
5.2(20) |
11.8 (3.6) |
|
8000(3629) |
12.2(1769.6) |
10.4(40) |
23.6(7.2) |
|
10000(4536) |
14.8(2146.7) |
15.6(60) |
36.7(11.2) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
1 |
10000(4536) |
23.0(7.0) |
|
2 |
7355(3336) |
49.2(15.0) |
|
3 |
6780(3075) |
78.7(24.0) |
|
4 |
5711(2591) |
86.9(26.5) |
| ITEM | HWE10000 | ||
| Overall dimensions | 25.3″×9.5″×10.0″ | ||
| (L×W×H) | 643mm×241mm ×255mm | ||
| Net weight (Ibs) | 143 | ||
| (kgs) | 65 |
Kategori produk : Win Perindustrian > Win Hidraulik Perindustrian
