Model No.: EWX3000D
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Origin: CHINA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW

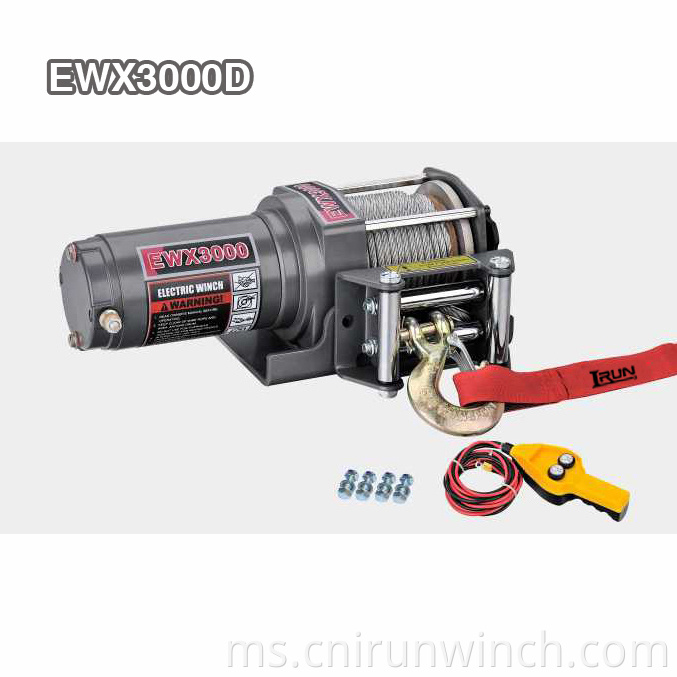

ATV winch 3000LB Item No.EWX3000D
Kemajuan dalam pembangunan win menjadikan mereka lebih mudah, tahan lama dan berpatutan. Winch ATV model EWX3000D hanya mempunyai berat 9.5 KG dan mampu menarik beban sehingga 1.361 Tan (1361 KG).
Semua Win ATV kami menampilkan reka bentuk yang luar biasa, dan model EWX3000D ini sangat menarik. Ia mempunyai badan gelap, cangkuk emas dan kabel perak, memberikan penampilan yang mengagumkan.
ciri-ciri:
1. gear pengurang keluli penuh
2. Tindakan brek automatik
3. Klac kili percuma
4. Pemacu kuasa DC 12V atau DC 24V pilihan
5. Kawalan suis kerja arus tinggi secara langsung
6. Kawalan suis bar hendal ATV
7. Kotak kawalan penetapan boleh tanggal pilihan
8. Kotak kawalan penetapan berasingan pilihan
9. Alat kawalan jauh melalui kotak kawalan dan suis
10. Alat kawalan jauh wayarles tersedia
EWX3000
| SPECIFICATION | |
| Rated line pull | 3000 lbs (1361 kg) |
| Motor: permanent magnet | 12V: Input: 2.2kW / 2.9hp; Output: 0.8kW / 1.1hp |
| 24V: Input: 2.4kW / 3.2hp; Output: 0.9kW / 1.2hp | |
| Gear reduction ratio | 153:1 |
| Cable (Dia. × L) | Ø3/16″×46′ (Ø4.8mm×14m) |
| Drum size (Dia. × L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull
lbs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3000(1361) | 5.6(1.7) | |
| 0 | 10.2(3.1) | 9.8(3.0) | 18 | 15 | 2 | 2370(1075) | 12.1(3.7) |
| 1000(454) | 7.5(2.3) | 8.9(2.7) | 90 | 45 | 3 | 1960(889) | 19.7(6.0) |
| 2000(907) | 5.9(1.8) | 7.5(2.3) | 130 | 65 | 4 | 1670(756) | 27.9(8.5) |
| 3000(1361) | 4.3(1.3) | 6.2(1.9) | 180 | 100 | 5 | 1460(662) | 37.1(11.3) |
| 6 | 1290(585) | 45.9(14.0) | |||||
| ITEM | EWX3000D | EWX3000A | EWX3000U |
| Overall dimensions | 12.8″×4.5″×4.3″ | 12.8″×4.5″×4.3″ | 13.0″×4.5″×5.9″ |
| (L×W×H) | 324mm×113mm×108 mm | 324mm×113mm×108 mm | 331mm×113mm×150mm |
| Net weight (lbs) | 21.0 | 21.8 | 21.6 |
| (kgs) | 9.5 | 9.9 | 9.8 |

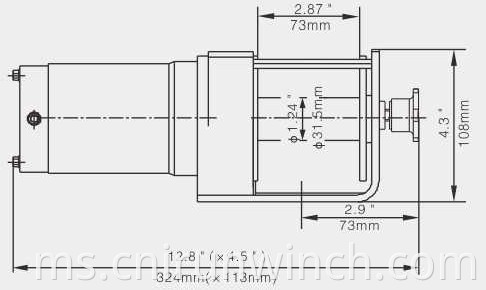

Dimensi Keseluruhan: 12.8″ x 4.5″ x 4.3″
(L x W x T) 324mm x 113mm x 108mm
Berat Bersih: 9.5 KGS
Kategori produk : Win Atv Dan Utv > Atv Winch
