Model No.: EWD8000
Jenama: TEMPAHAN OEM BOLEH DITERIMA
Origin: CHINA
Sumber Kuasa: Elektrik
Permohonan: ATV / UTV
Voltan: 24V, 12V
Pembungkusan: KARTON EKSPORT
Pengangkutan: Ocean,Air
Tempat asal: CHINA
Port: NINGBO,SHANGHAI
Jenis bayaran: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
EWD SERIES Winch series ialah win elektrik dua kelajuan yang sempurna dengan Max. Daya tarikan 5,500 lbs pada kelajuan tinggi. Anjakan kelajuan dan kawalan klac boleh digunakan secara serentak untuk memberikan lebih banyak kemudahan kepada pengguna.

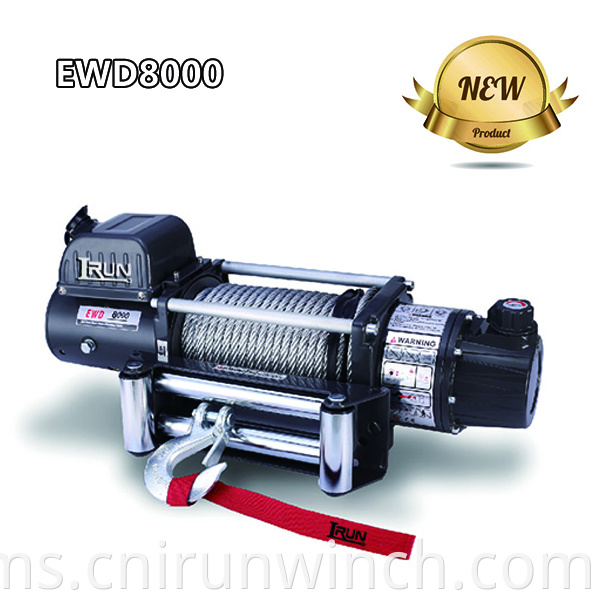

Win Pemulihan Elektrik Berkelajuan Dwi 8000 Lbs Dengan Klac Rekaan Baharu No. Item EWD8000
Win ini mempunyai kapasiti tarikan berkadar 8000lbs dengan dua kelajuan pilihan untuk operasi sebenar. Peralihan kelajuan dan kawalan klac
adalah reka bentuk paten kami.
ciri-ciri:
EWD 8000
| Specification: | ||||
| Rated line pull | 8000 lbs (3629 kg) | |||
| Motor: Series wound | 12V: Input: 3.4kW / 4.6hp | |||
| Output: 2.0kW / 2.7hp | ||||
| 24V: Input: 3.1kW / 4.2hp | ||||
| Output: 2.6kW / 3.5hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 4000(1814) | 9.8(3.0) | 10.5(3.2) | 190 | 80 | 2000(907) | 25.9(7.9) | 22.3(6.8) | 245 | 115 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 19.0(5.8) | 300 | 135 |
| 8000(3629) | 7.2(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 17.1(5.2) | 365 | 170 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 8000(3629) | 20.0(6.1) |
| 2 | 6529(2962) | 44.3(13.5) |
| 3 | 5515(2502) | 72.0(22.0) |
| 4 | 4773(2165) | 95.1(29.0) |

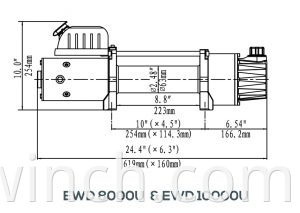

| ITEM | EWD 8000U | EWD 8000S | EWD 8000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 77.2lbs / 35.0kg | 83.8lbs / 38kg | 88.2lbs / 40kg |
Kategori produk : Win Elektrik > Win Elektrik 2 Kelajuan
